Technical Library

Everything Your
Engineer Needs.

Full technical data, CAD drawings, installation guides, and material certifications for every LIGNA system — ready to download and drop straight into your specification.

Downloads Technical Data Finishes Sustainability Get Support

Technical Downloads

All documents are free to download. Updated Q1 2026.

LIGNA DECK

Luxury Decking — Iroko / Accoya — 90mm & 120mm

DECK — Technical Data Sheet PDF · 2.4 MB · Rev 03

DECK — Installation Guide PDF · 1.8 MB · Rev 02

DECK — CAD Profile Drawings DWG · 890 KB · AutoCAD 2020+

DECK — BIM Object (Revit) RFA · 1.2 MB · Revit 2022+

LIGNA CLAD

Architectural Facades — 120mm Shadow-Gap — Rainscreen System

CLAD — Technical Data Sheet PDF · 3.1 MB · Rev 04

CLAD — Rainscreen Installation Guide PDF · 2.2 MB · Rev 03

CLAD — CAD Section Drawings DWG · 1.1 MB · AutoCAD 2020+

CLAD — LEED / Estidama Credit Sheet PDF · 980 KB · Rev 01

LIGNA SLAT

Louvres & Privacy Screens — 20×40mm to 40×140mm

SLAT — Technical Data Sheet PDF · 1.9 MB · Rev 02

SLAT — Full Profile Size Range CAD DWG · 760 KB · AutoCAD 2020+

SLAT — Fixing & Spacing Guide PDF · 1.1 MB · Rev 02

SLAT — BIM Object (Revit) RFA · 980 KB · Revit 2022+

LIGNA STRUCT

Glulam & Mass Timber — 150×150mm+ — EN 14080 Certified

STRUCT — Technical Data Sheet PDF · 4.2 MB · Rev 05

STRUCT — Structural Design Guide PDF · 3.8 MB · Rev 03

STRUCT — Standard Section CAD Library DWG · 2.1 MB · AutoCAD 2020+

STRUCT — EN 14080 Certificate PDF · 440 KB · Valid 2026

Technical Data

Key performance metrics across all four systems.

Property	LIGNA DECK	LIGNA CLAD	LIGNA SLAT	LIGNA STRUCT
Material (Luxe)	Iroko	Iroko	Iroko	Iroko
Material (Dura)	Dabema	Dabema	Dabema	—
Width	95mm or 120mm	120mm	40×60 / 60×60 / 120×60mm	100 / 120 / 150mm
Thickness	19mm	17mm	—	100 / 120 / 150mm
Length	Variable	Variable	Variable	Variable
Treatment	Kiln Dried	Kiln Dried	Kiln Dried	Kiln Dried
Colour / Texture	Natural	Natural	Natural	Natural
Application	Outdoor Flooring	Facades / Soffits	Louvres / Screens / Ceilings	Pergolas / Cabanas / Gazebos

All data is indicative. Refer to individual product data sheets for project-specific values. Contact our technical team for structural calculations and site-specific specifications.

Finishes & Treatments

Every system ships in your specified finish — factory-applied for consistency.

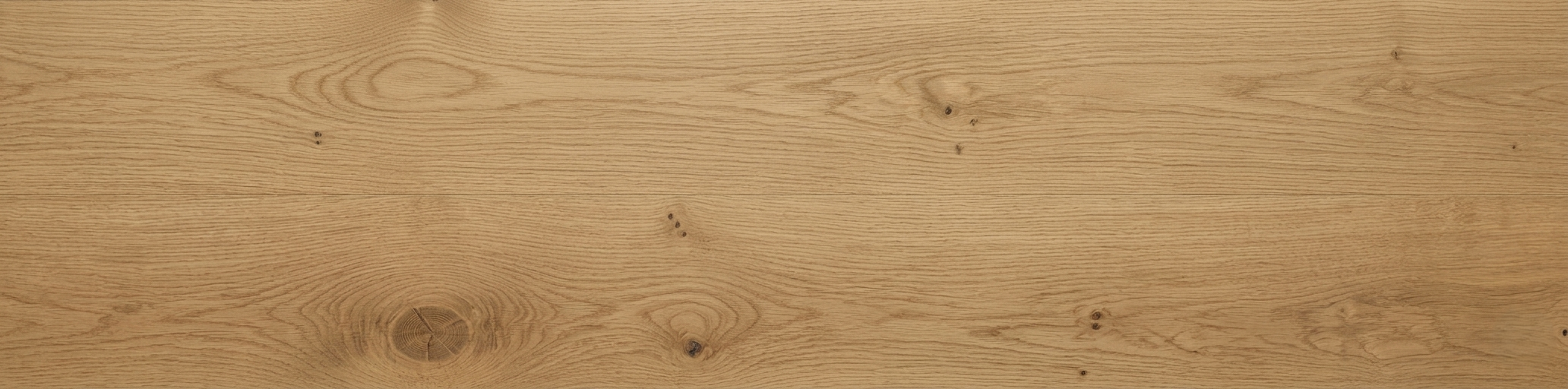

Natural Oiled

Factory-applied oil finish — enhances the natural grain and warm tone of the timber, UV-stabilised and site-ready on delivery.

Available: Deck · Clad · Slat · Struct

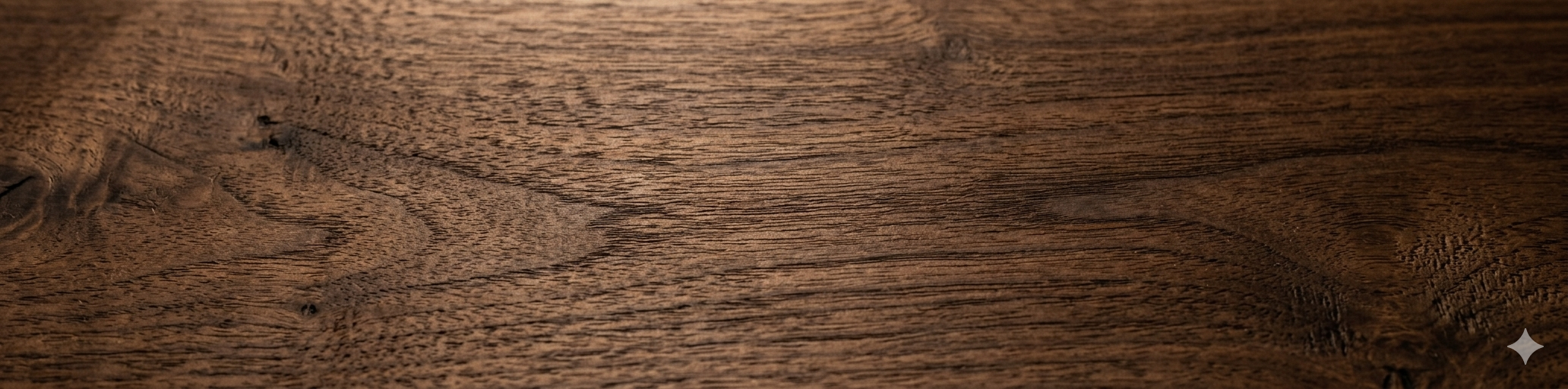

Stained Finish

Penetrating pigment stain applied in controlled factory conditions for a deep, even tone — available in a range of custom colours on request.

Available: Deck · Clad · Slat

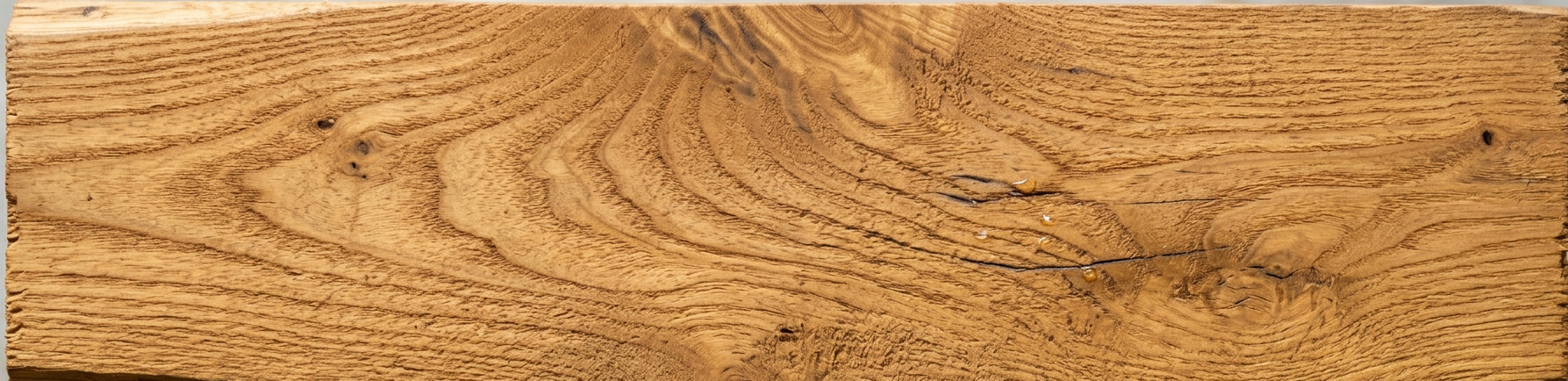

Unfinished

Raw thermally modified timber — for site-applied finishes or to allow natural silver weathering over time.

Available: All Systems

Custom RAL-matched stains and bespoke finishes available on request for orders above 200m². Lead time: 3–4 weeks additional.

Sustainability & Certification

Building with LIGNA is building with a conscience.

Our Founding Commitment

LIGNA was founded on a single conviction: that the Middle East's built environment deserved better than the cheap composites and imported softwoods that had dominated the market for decades. We set out to prove that premium, genuinely sustainable timber could not only survive the Gulf climate — it could define it.

Every tree we source replaces itself. Every board we manufacture is traceable from forest floor to installation. And every project we complete sequesters more carbon than our manufacturing process emits. That is not a marketing claim — it is a measurable, audited fact.

We are proud to be the region's only timber manufacturer with full chain-of-custody FSC certification, and we intend to keep it that way.

FSC Chain of Custody

Every LIGNA product carries FSC CoC certification — fully traceable from sustainably managed forests to your project site.

Download Certificate

LEED & Estidama

LIGNA systems contribute to LEED v4 MR credits and Estidama Pearl Rating — full credit documentation available.

Download Credit Summary

Carbon Sequestration

Thermally modified timber locks carbon for the lifetime of the installation. Our EPD confirms a net-negative carbon footprint per m³.

Download EPD

Zero Chemicals

Thermal modification uses only heat and steam — no biocides, no preservatives. Safe for waterfront, pool, and food-adjacent environments.

Download Declaration

Technical Support

Speak Directly to
Our Timber Engineers.

Can't find what you need? Our technical team responds within 2 hours during business hours. Send us your drawings, your brief, or just a question — we'll come back with a proper answer.

WhatsApp Us Now +971528961013 info@ligna.ae

Sun – Thu, 8:00am – 6:00pm GST

Specification advice for your project type

Structural calculations for STRUCT systems

Custom profile and finish consultations

LEED / Estidama credit documentation

Sample and Architect's Box requests

Site visit and mock-up arrangements
